Grafana : выявление проблем у сервисов

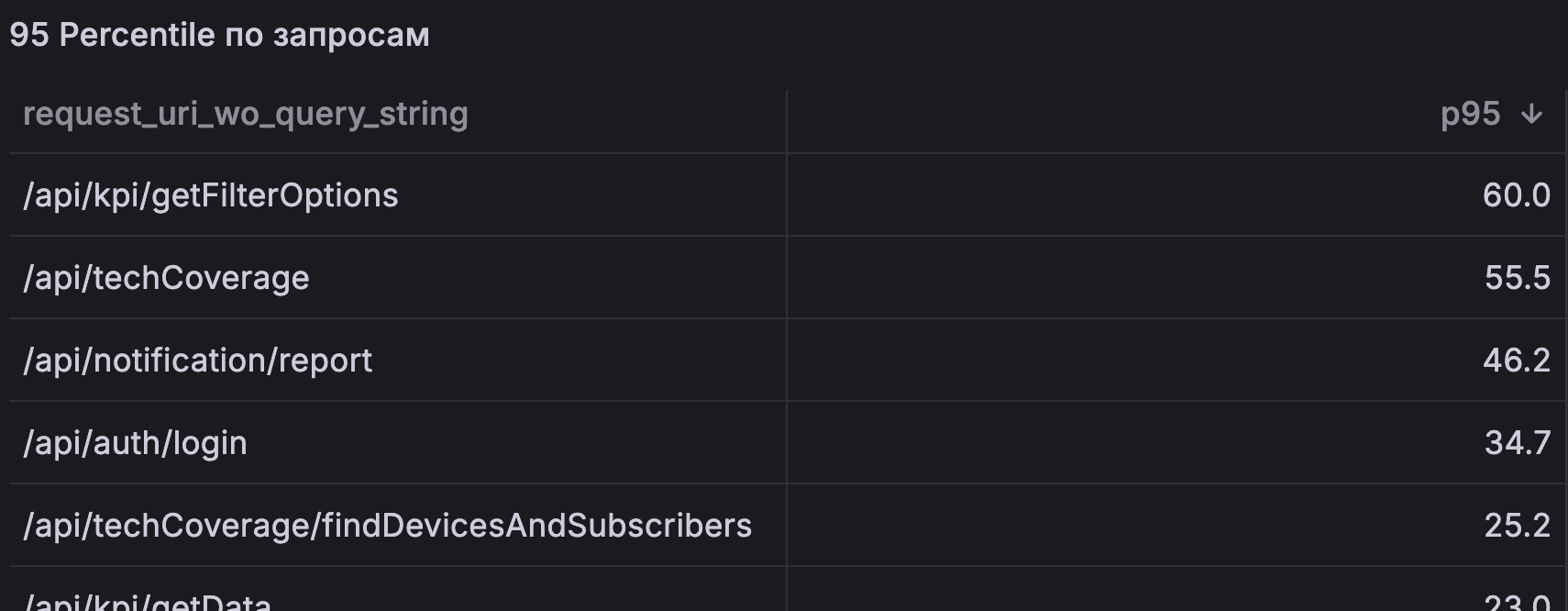

Какие запросы самые тормозные
quantile_over_time(
0.95,
{hostname=~".+", service_name =~ "(.+)-be-([0-9].+)"}
| json request_time, request_uri_wo_query_string
| __error__=""
| request_time != ``
| keep request_time, request_uri_wo_query_string
| unwrap request_time
| __error__=""
[$__auto]
)
{
"id": 12,
"type": "table",
"title": "95 Percentile по запросам",
"gridPos": {
"x": 0,
"y": 60,
"h": 8,
"w": 12
},
"fieldConfig": {
"defaults": {
"custom": {
"align": "auto",
"footer": {
"reducers": []
},
"cellOptions": {
"type": "auto"
},
"inspect": false
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"color": {
"mode": "thresholds"
},
"unit": "none"
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "Requests"
},
"properties": [
{
"id": "custom.width",
"value": 153
}
]
}
]
},

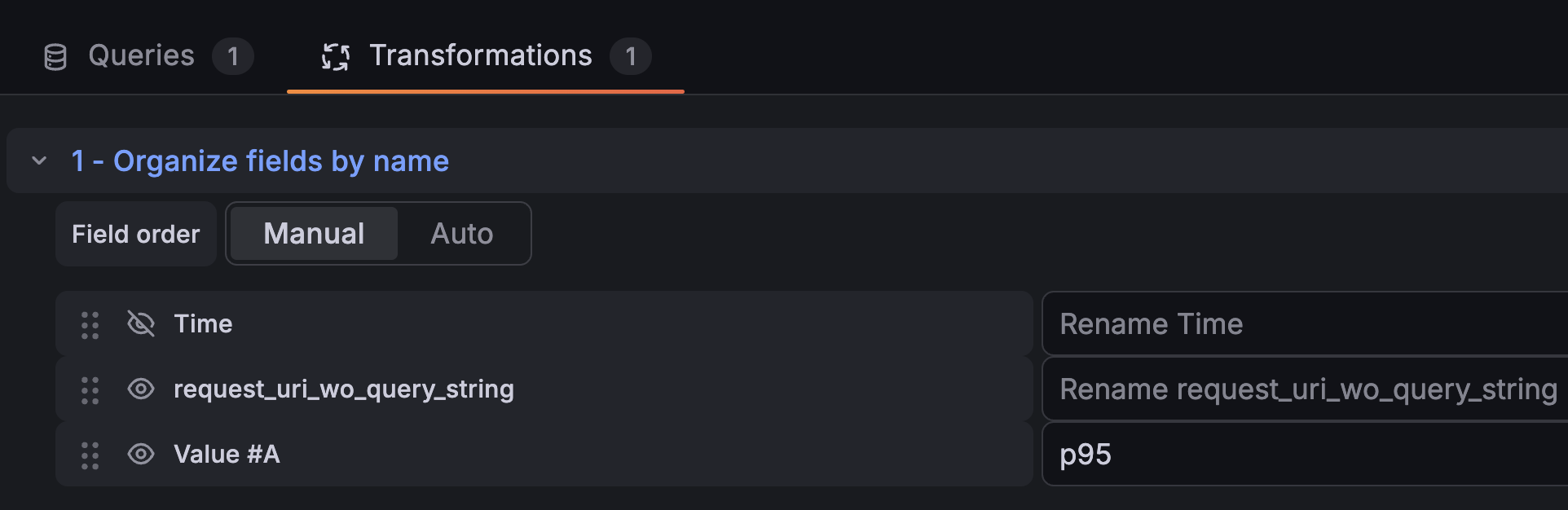

"transformations": [
{
"id": "organize",
"options": {
"excludeByName": {
"Time": true
},
"includeByName": {},
"indexByName": {},
"renameByName": {
"Value #A": "p95"
}
}
}
],
"pluginVersion": "12.3.0",
"targets": [
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "quantile_over_time(\n 0.95,\n {hostname=~\".+\", service_name =~ \"(.+)-be-([0-9].+)\"}\n | json request_time, request_uri_wo_query_string\n | __error__=\"\"\n | request_time != ``\n | keep request_time, request_uri_wo_query_string\n | unwrap request_time\n | __error__=\"\"\n [$__auto]\n)",
"legendFormat": "",
"queryType": "instant",
"refId": "A"
}
],
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"options": {
"showHeader": true,
"cellHeight": "sm",
"sortBy": [
{
"desc": true,
"displayName": "p95"
}
]
}

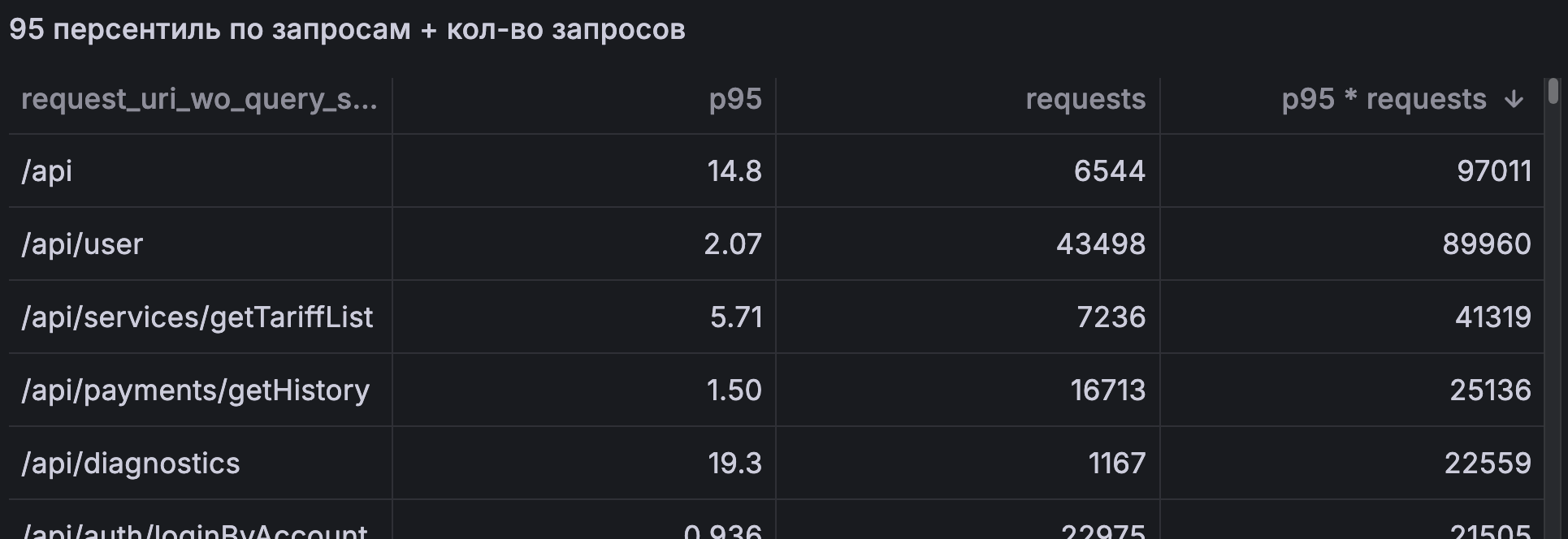

}Какие запросы стоит оптимизировать в первую очередь
sum by (request_uri_wo_query_string) (
count_over_time(
{hostname=~".+", service_name=~"(.+)-be-([0-9].+)"}
| json
| __error__=""
| request_uri_wo_query_string =~ ".+"
[$__auto])
){
"id": 10,
"type": "table",
"title": "95 персентиль по запросам + кол-во запросов",
"gridPos": {
"x": 12,
"y": 60,
"h": 8,
"w": 12
},
"fieldConfig": {
"defaults": {
"custom": {
"align": "auto",
"footer": {
"reducers": []
},
"cellOptions": {
"type": "auto"
},
"inspect": false
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"color": {
"mode": "thresholds"
},
"unit": "none"
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "requests"
},
"properties": []
},
{
"matcher": {
"id": "byName",
"options": "p95"
},
"properties": []
}
]
},
"transformations": [
{
"id": "joinByField",
"options": {
"byField": "request_uri_wo_query_string",
"mode": "outer"
}
},
{
"id": "organize",
"options": {
"excludeByName": {
"Time 1": true,
"Time 2": true
},
"includeByName": {},
"indexByName": {
"Time 1": 3,
"Time 2": 0,
"Value #A": 4,
"Value #B": 2,
"request_uri_wo_query_string": 1
},
"renameByName": {
"Time 1": "Дата времени выполнения запроса для отображения данных",
"Time 2": "Дата времени выполнения запроса для отображения данных",
"Value #A": "requests",
"Value #B": "p95"
}
}
},
{
"id": "calculateField",
"options": {
"binary": {
"left": {
"matcher": {
"id": "byName",
"options": "p95"
}
},
"operator": "*",
"right": {
"matcher": {
"id": "byName",
"options": "requests"
}
}
},
"mode": "binary",
"reduce": {
"reducer": "sum"
},
"replaceFields": false
}
}
],
"pluginVersion": "12.3.0",
"targets": [
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "sum by (request_uri_wo_query_string) (\n count_over_time(\n {hostname=~\".+\", service_name=~\"(.+)-be-([0-9].+)\"} \n | json \n | __error__=\"\"\n | request_uri_wo_query_string =~ \".+\"\n [$__auto])\n)",
"legendFormat": "request_uri_wo_query_string",
"queryType": "instant",
"refId": "A"
},
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "quantile_over_time(0.95, \n {hostname=~\".+\", service_name=~\"(.+)-be-([0-9].+)\"} \n | json \n | __error__=\"\"\n | unwrap request_time\n [$__auto]\n) by (request_uri_wo_query_string)\n",
"hide": false,
"legendFormat": "p95",
"queryType": "instant",
"refId": "B"
}
],
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"options": {
"showHeader": true,
"cellHeight": "sm",
"sortBy": [
{
"desc": true,
"displayName": "p95 * requests"
}
]
}

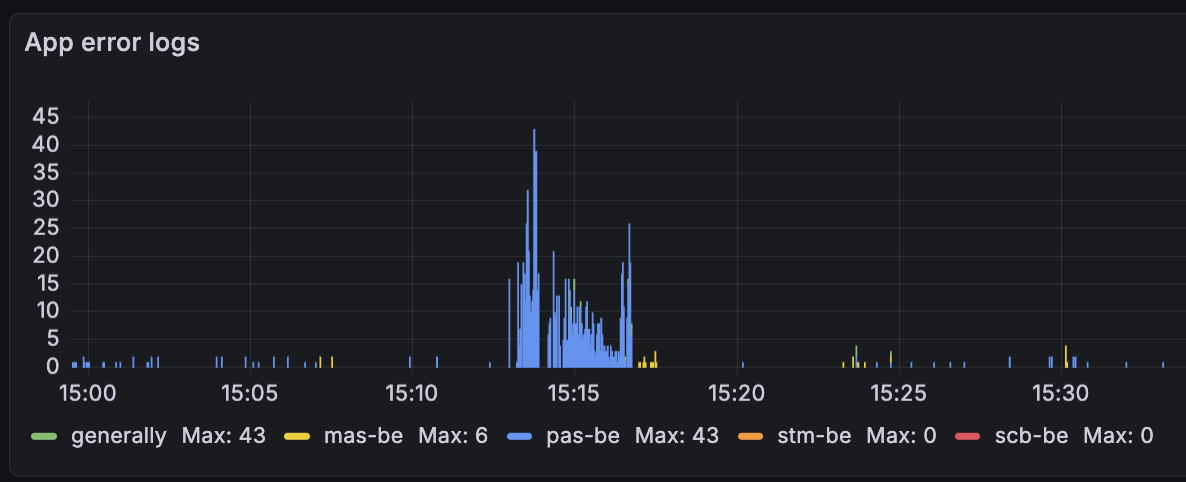

}Ошибки json и не json
(sum(count_over_time({hostname=~".+", service_name =~ "(.+)-be-([0-9].+)"} | json | level > 200 [$__auto])) or vector(0)) + (sum(count_over_time({hostname=~".+", service_name =~ "(.+)-be-([0-9].+)"} |= "[error]" [$__auto])) or vector(0)){
"id": 15,
"type": "timeseries",
"title": "App error logs",
"gridPos": {
"x": 0,
"y": 32,
"h": 7,
"w": 24
},
"fieldConfig": {
"defaults": {
"custom": {
"drawStyle": "bars",
"lineInterpolation": "linear",
"barAlignment": 0,
"barWidthFactor": 0.6,
"lineWidth": 1,
"fillOpacity": 0,
"gradientMode": "none",
"spanNulls": false,
"insertNulls": false,
"showPoints": "never",
"showValues": false,
"pointSize": 5,
"stacking": {
"mode": "none",
"group": "A"
},
"axisPlacement": "auto",
"axisLabel": "",
"axisColorMode": "text",
"axisBorderShow": false,
"scaleDistribution": {
"type": "linear"
},
"axisCenteredZero": false,
"hideFrom": {
"tooltip": false,
"viz": false,
"legend": false
},
"thresholdsStyle": {
"mode": "off"
}
},
"color": {
"mode": "palette-classic"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": []
},
"pluginVersion": "12.3.0",
"targets": [
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "(sum(count_over_time({hostname=~\".+\", service_name =~ \"(.+)-be-([0-9].+)\"} | json | level > 200 [$__auto])) or vector(0)) + (sum(count_over_time({hostname=~\".+\", service_name =~ \"(.+)-be-([0-9].+)\"} |= \"[error]\" [$__auto])) or vector(0))",
"hide": false,
"legendFormat": "generally",
"queryType": "range",
"refId": "B"
},
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "(sum(count_over_time({hostname=~\".+\", service_name=~\"mas-be-([0-9].+)\"} | json | level > 200 [$__auto])) or vector(0)) + (sum(count_over_time({hostname=~\".+\", service_name=~\"mas-be-([0-9].+)\"} |= \"[error]\" [$__auto])) or vector(0))",
"hide": false,
"legendFormat": "mas-be",
"queryType": "range",
"refId": "C"
},
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "(sum(count_over_time({hostname=~\".+\", service_name=~\"pas-be-([0-9].+)\"} | json | level > 200 [$__auto])) or vector(0)) + (sum(count_over_time({hostname=~\".+\", service_name=~\"pas-be-([0-9].+)\"} |= \"[error]\" [$__auto])) or vector(0))",
"hide": false,
"legendFormat": "pas-be",
"queryType": "range",
"refId": "A"
},
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "(sum(count_over_time({hostname=~\".+\", service_name=~\"stm-be-([0-9].+)\"} | json | level > 200 [$__auto])) or vector(0)) + (sum(count_over_time({hostname=~\".+\", service_name=~\"stm-be-([0-9].+)\"} |= \"[error]\" [$__auto])) or vector(0))",
"hide": false,
"legendFormat": "stm-be",
"queryType": "range",
"refId": "D"
},
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "(sum(count_over_time({hostname=~\".+\", service_name=~\"scb-be-([0-9].+)\"} | json | level > 200 [$__auto])) or vector(0)) + (sum(count_over_time({hostname=~\".+\", service_name=~\"scb-be-([0-9].+)\"} |= \"[error]\" [$__auto])) or vector(0))",
"hide": false,
"legendFormat": "scb-be",
"queryType": "range",
"refId": "E"
}
],
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"interval": "1s",
"options": {
"tooltip": {
"mode": "multi",
"sort": "none",
"hideZeros": false
},
"legend": {
"showLegend": true,
"displayMode": "list",
"placement": "bottom",
"calcs": [
"max"
],
"sortBy": "Max",
"sortDesc": true
}
}

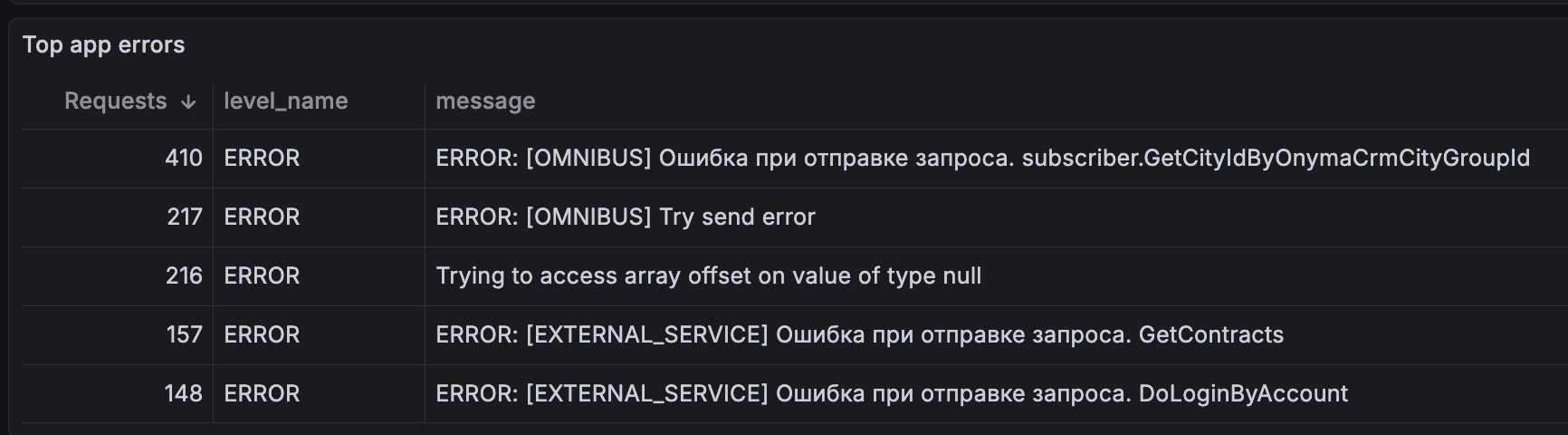

}Top app errors
topk(100, sum by (message,level_name) (count_over_time({hostname=~".+", service_name=~`(.+)-be-([0-9].+)`} | json | message=~".+" | level_name=~".+" [$__auto]))){
"id": 13,
"type": "table",
"title": "Top app errors",
"gridPos": {
"x": 0,
"y": 39,
"h": 7,
"w": 24
},
"fieldConfig": {
"defaults": {
"custom": {
"align": "auto",
"footer": {
"reducers": []
},
"cellOptions": {
"type": "auto"
},
"inspect": false
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"color": {
"mode": "thresholds"
},
"unit": "none"
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "Requests"
},
"properties": [
{
"id": "custom.width",
"value": 118
}
]
},
{
"matcher": {
"id": "byName",
"options": "level_name"
},
"properties": [
{
"id": "custom.width",
"value": 130
}
]
}
]
},
"transformations": [
{
"id": "organize",
"options": {
"excludeByName": {
"Field": false,
"Time": true
},
"includeByName": {},
"indexByName": {
"Time": 0,
"Value #A": 3,
"request_uri": 2,
"status": 1
},
"renameByName": {
"Value #A": "Requests"
}
}
}
],
"pluginVersion": "12.3.0",
"targets": [
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "topk(100, sum by (message,level_name) (count_over_time({hostname=~\".+\", service_name=~`(.+)-be-([0-9].+)`} | json | message=~\".+\" | level_name=~\".+\" [$__auto])))",
"legendFormat": "{{status}}",
"queryType": "instant",
"refId": "A"
}
],
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"options": {
"showHeader": true,
"cellHeight": "sm",
"sortBy": [
{
"desc": true,
"displayName": "Requests"
}
]
}

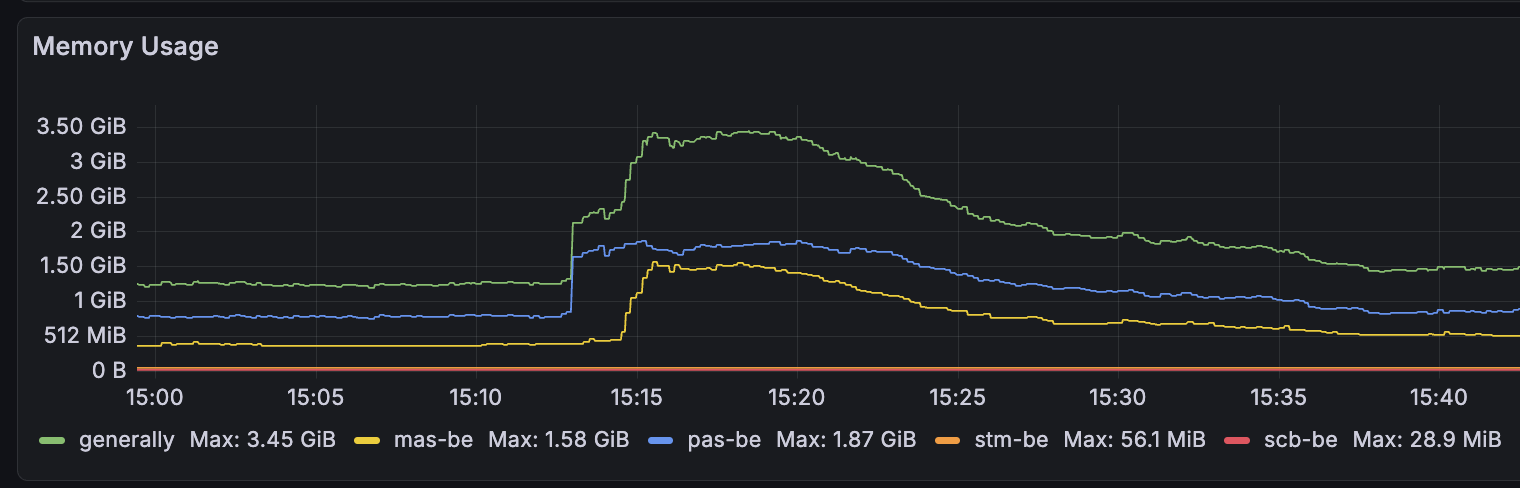

}Memory Usage
sum(container_memory_rss{instance=~".+", name=~"(.+)-be-([0-9].+)"}){
"id": 14,
"type": "timeseries",
"title": "Memory Usage",
"gridPos": {
"x": 0,
"y": 25,
"h": 7,
"w": 24
},
"fieldConfig": {
"defaults": {
"custom": {
"drawStyle": "line",
"lineInterpolation": "linear",
"barAlignment": 0,
"barWidthFactor": 0.6,
"lineWidth": 1,
"fillOpacity": 0,
"gradientMode": "none",
"spanNulls": true,
"insertNulls": false,
"showPoints": "never",
"showValues": false,
"pointSize": 5,
"stacking": {
"mode": "none",
"group": "A"
},
"axisPlacement": "auto",
"axisLabel": "",
"axisColorMode": "text",
"axisBorderShow": false,
"scaleDistribution": {
"type": "linear"
},
"axisCenteredZero": false,
"hideFrom": {
"tooltip": false,
"viz": false,
"legend": false
},
"thresholdsStyle": {
"mode": "off"
},
"lineStyle": {
"fill": "solid"
}
},
"color": {
"mode": "palette-classic"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "bytes"
},
"overrides": []
},
"pluginVersion": "12.3.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "ce4iqqnzxpatcb"
},
"editorMode": "code",
"expr": "sum(container_memory_rss{instance=~\".+\", name=~\"(.+)-be-([0-9].+)\"})",
"interval": "",
"legendFormat": "generally",
"range": true,
"refId": "B"
},
{
"datasource": {
"type": "prometheus",
"uid": "ce4iqqnzxpatcb"
},
"editorMode": "code",
"expr": "sum(container_memory_rss{instance=~\".+\", name=~\"mas-be-([0-9].+)\"})",
"hide": false,
"legendFormat": "mas-be",
"range": true,
"refId": "C"
},
{
"datasource": {
"type": "prometheus",
"uid": "ce4iqqnzxpatcb"
},
"editorMode": "code",
"expr": "sum(container_memory_rss{instance=~\".+\", name=~\"pas-be-([0-9].+)\"})",
"hide": false,
"legendFormat": "pas-be",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "ce4iqqnzxpatcb"
},
"editorMode": "code",
"expr": "sum(container_memory_rss{instance=~\".+\", name=~\"stm-be-([0-9].+)\"})",
"hide": false,
"legendFormat": "stm-be",
"range": true,
"refId": "D"
},
{
"datasource": {
"type": "prometheus",
"uid": "ce4iqqnzxpatcb"
},
"editorMode": "code",
"expr": "sum(container_memory_rss{instance=~\".+\", name=~\"scb-be-([0-9].+)\"})",
"hide": false,
"legendFormat": "scb-be",
"range": true,
"refId": "E"
}
],
"datasource": {
"type": "prometheus",
"uid": "ce4iqqnzxpatcb"
},
"interval": "1s",
"options": {
"tooltip": {
"mode": "multi",
"sort": "none",
"hideZeros": false
},
"legend": {
"showLegend": true,
"displayMode": "list",
"placement": "bottom",
"calcs": [
"max"
],
"sortBy": "Max",
"sortDesc": true
}
}

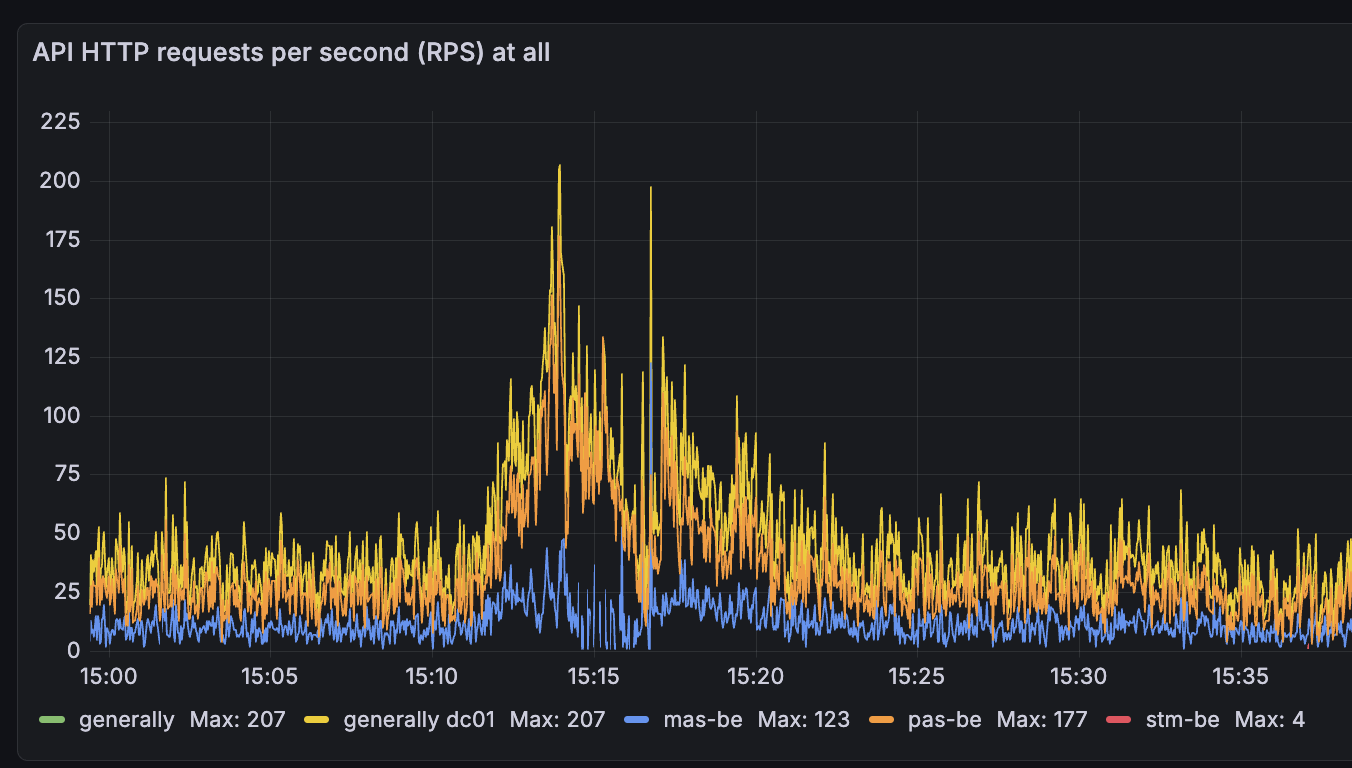

}API HTTP requests per second (RPS) at all
sum(count_over_time({hostname=~".+", service_name =~ "(.+)-be-([0-9].+)"} |= "upstream_response_time" | json | __error__= "" [$__auto])){
"id": 2,
"type": "timeseries",
"title": "API HTTP requests per second (RPS) at all",
"gridPos": {
"x": 0,
"y": 0,
"h": 11,
"w": 24
},
"fieldConfig": {
"defaults": {
"custom": {
"drawStyle": "line",
"lineInterpolation": "linear",
"barAlignment": 0,
"barWidthFactor": 0.6,
"lineWidth": 1,
"fillOpacity": 0,
"gradientMode": "none",
"spanNulls": false,
"insertNulls": false,
"showPoints": "never",
"showValues": false,
"pointSize": 5,
"stacking": {
"mode": "none",
"group": "A"
},
"axisPlacement": "auto",
"axisLabel": "",
"axisColorMode": "text",
"axisBorderShow": false,
"scaleDistribution": {
"type": "linear"
},
"axisCenteredZero": false,
"hideFrom": {
"tooltip": false,
"viz": false,
"legend": false
},
"thresholdsStyle": {
"mode": "off"
}
},
"color": {
"mode": "palette-classic"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": []
},
"pluginVersion": "12.3.0",
"targets": [
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "sum(count_over_time({hostname=~\".+\", service_name =~ \"(.+)-be-([0-9].+)\"} |= \"upstream_response_time\" | json | __error__= \"\" [$__auto]))",
"hide": false,
"legendFormat": "generally",
"queryType": "range",
"refId": "B"
},
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "sum(count_over_time({hostname=~\"dc01(.+)\", service_name =~ \"(.+)-be-([0-9].+)\"} |= \"upstream_response_time\" | json | __error__= \"\" [$__auto]))",
"hide": false,
"legendFormat": "generally dc01",
"queryType": "range",
"refId": "F"
},
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "sum(count_over_time({hostname=~\"dc02(.+)\", service_name =~ \"(.+)-be-([0-9].+)\"} |= \"upstream_response_time\" | json | __error__= \"\" [$__auto]))",
"hide": false,
"legendFormat": "generally dc02",
"queryType": "range",
"refId": "G"
},
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "sum(count_over_time({hostname=~\".+\", service_name=~\"mas-be-([0-9].+)\"} |= \"upstream_response_time\" | json | __error__=\"\" [$__auto]))",
"hide": false,
"legendFormat": "mas-be",
"queryType": "range",
"refId": "C"
},
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "sum(count_over_time({hostname=~\".+\", service_name=~\"pas-be-([0-9].+)\"} |= \"upstream_response_time\" | json | __error__=\"\"[$__auto]))",
"hide": false,
"legendFormat": "pas-be",
"queryType": "range",
"refId": "A"
},
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "sum(count_over_time({hostname=~\".+\", service_name=~\"stm-be-([0-9].+)\"} |= \"upstream_response_time\" | json | __error__=\"\" [$__auto]))",
"hide": false,
"legendFormat": "stm-be",
"queryType": "range",
"refId": "D"
},
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "sum(count_over_time({hostname=~\".+\", service_name=~\"scb-be-([0-9].+)\"} |= \"upstream_response_time\" | json | __error__=\"\" [$__auto]))",
"hide": false,
"legendFormat": "scb-be",
"queryType": "range",
"refId": "E"
}
],
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"interval": "1s",
"options": {
"tooltip": {
"mode": "multi",
"sort": "asc",
"hideZeros": false
},
"legend": {
"showLegend": true,
"displayMode": "list",
"placement": "bottom",
"calcs": [
"max"
],
"sortBy": "Max",
"sortDesc": true
}
}

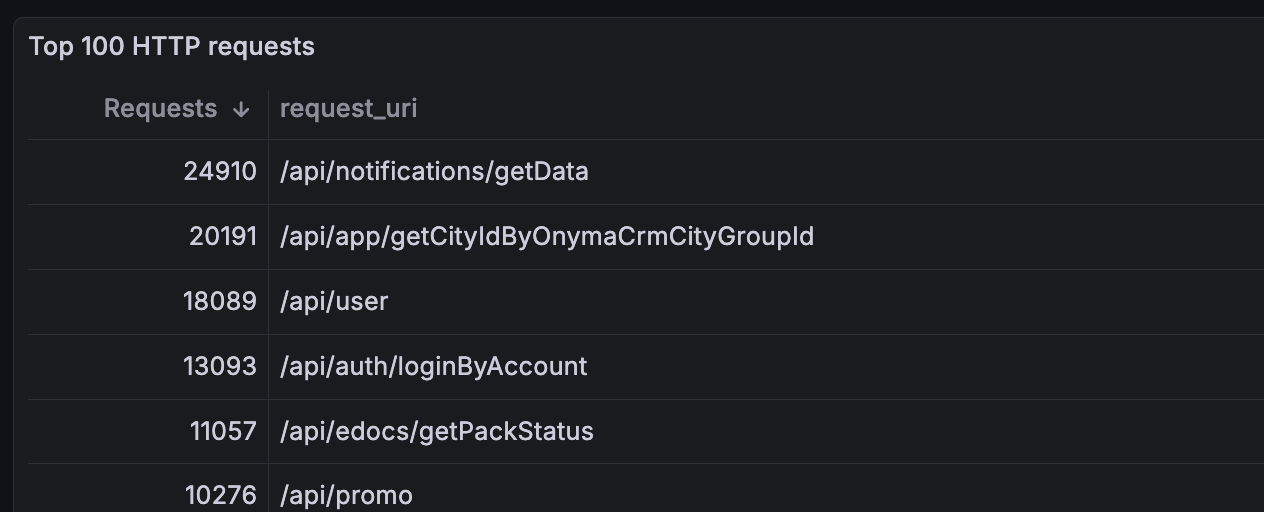

}Top 100 HTTP requests
topk(100, sum by(request_uri) (count_over_time({hostname=~".+", service_name =~ "(.+)-be-([0-9].+)"} | json | status != `` [$__auto]))){
"id": 5,
"type": "table",
"title": "Top 100 HTTP requests",
"gridPos": {
"x": 0,
"y": 46,
"h": 13,
"w": 12
},
"fieldConfig": {
"defaults": {
"custom": {
"align": "auto",
"footer": {
"reducers": []
},
"cellOptions": {
"type": "auto"
},
"inspect": false
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"color": {
"mode": "thresholds"
},
"unit": "none"
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "Requests"
},
"properties": [
{
"id": "custom.width",
"value": 134
}
]
}
]
},

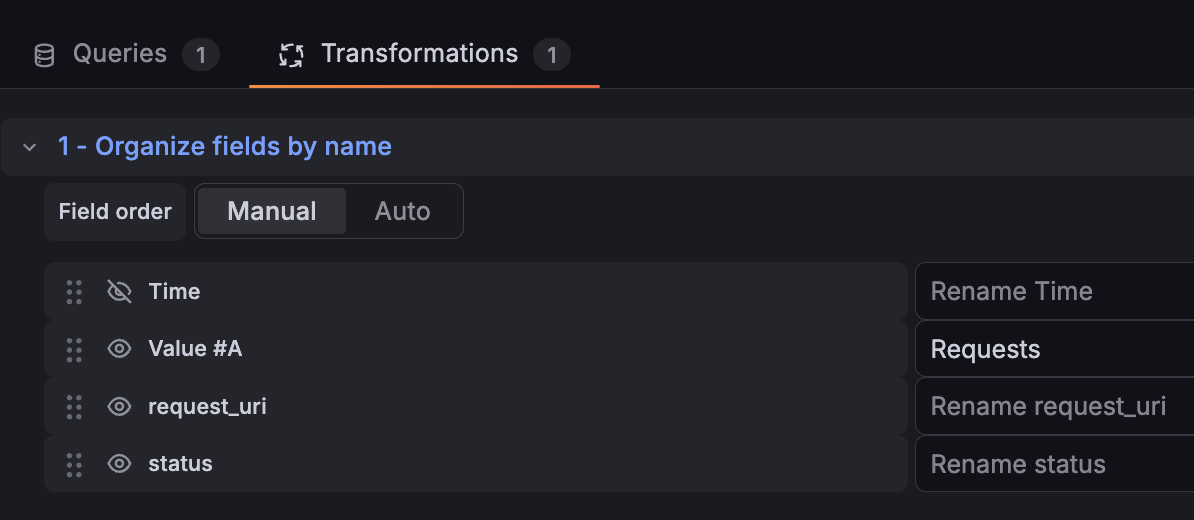

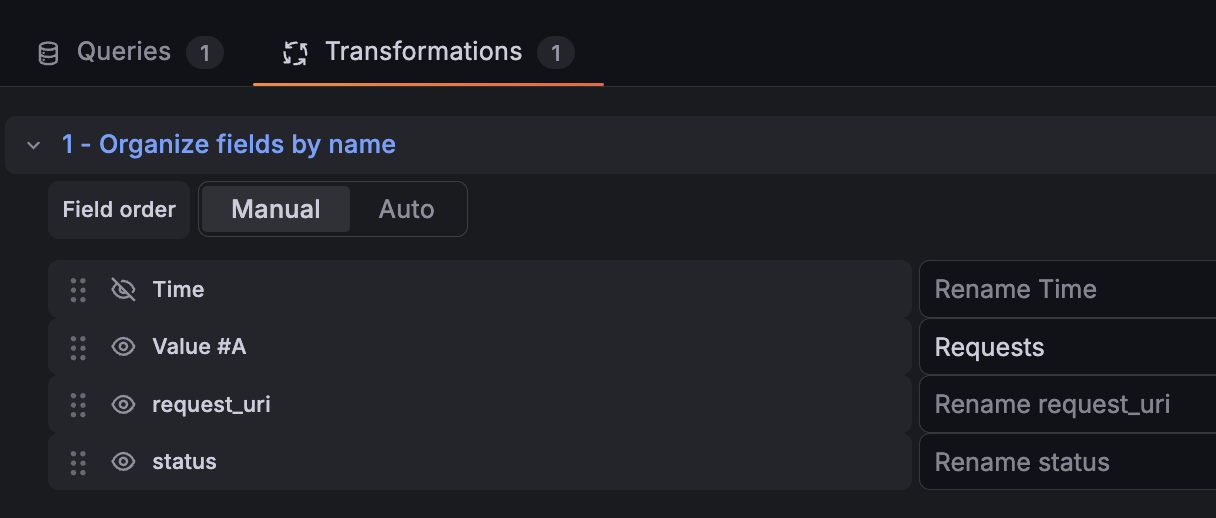

"transformations": [
{
"id": "organize",
"options": {
"excludeByName": {
"Field": false,
"Time": true
},
"includeByName": {},
"indexByName": {
"Time": 0,
"Value #A": 1,
"request_uri": 2,
"status": 3
},
"renameByName": {
"Value #A": "Requests"
}
}
}
],
"pluginVersion": "12.3.0",
"targets": [
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "topk(100, sum by(request_uri) (count_over_time({hostname=~\".+\", service_name =~ \"(.+)-be-([0-9].+)\"} | json | status != `` [$__auto])))",
"legendFormat": "{{status}}",
"queryType": "instant",
"refId": "A"
}
],
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"options": {
"showHeader": true,
"cellHeight": "sm",
"sortBy": [
{
"desc": true,
"displayName": "Requests"
}
]
}

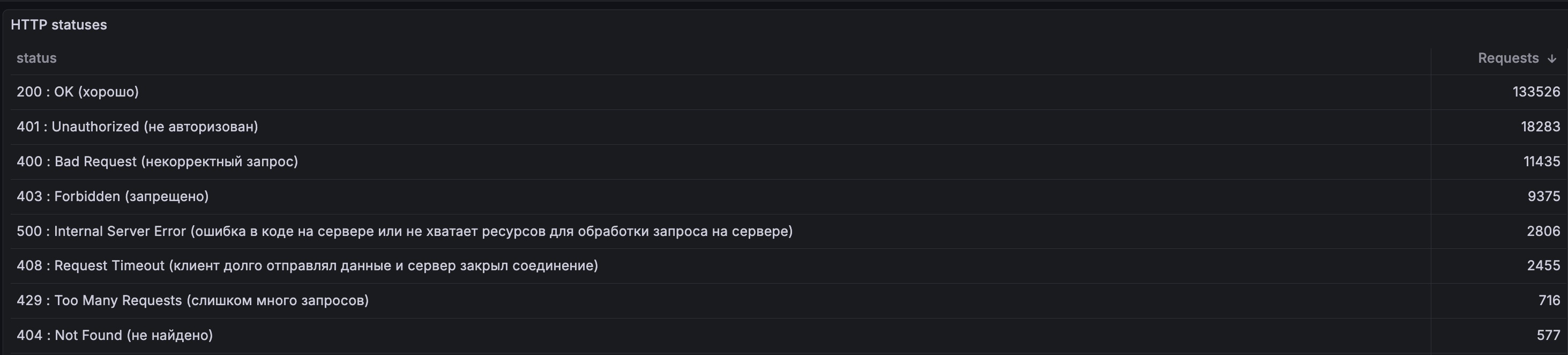

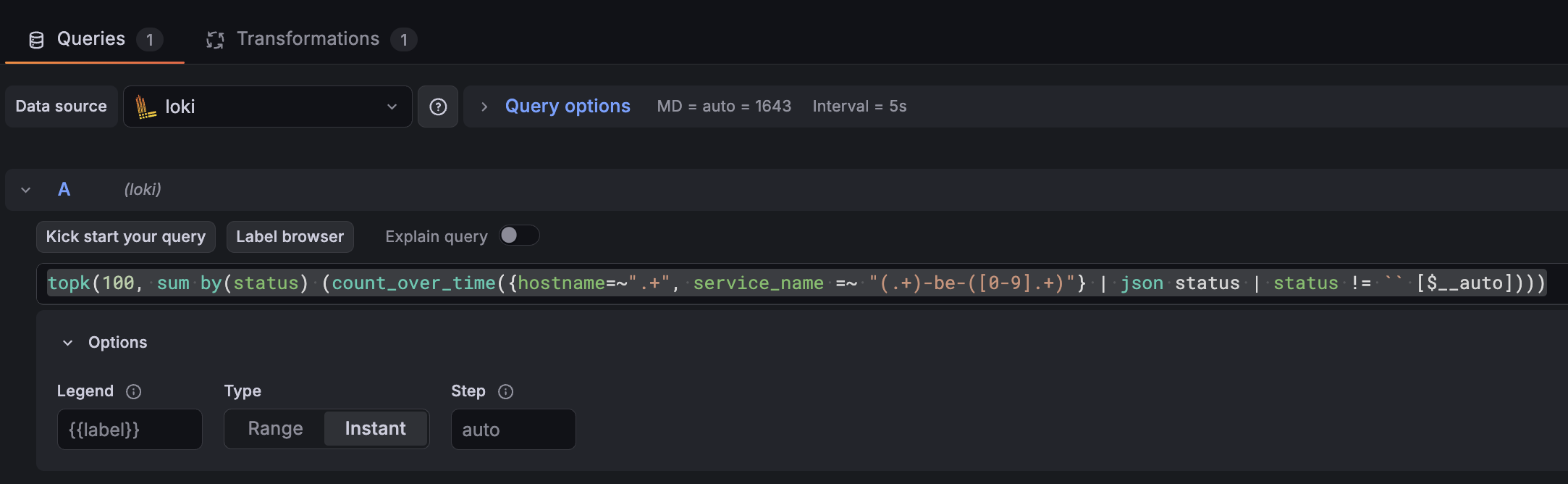

}HTTP statuses
topk(100, sum by(status) (count_over_time({hostname=~".+", service_name =~ "(.+)-be-([0-9].+)"} | json status | status != `` [$__auto])))
Здесь важный момент то, что значения подменяются на описания согласно mappings:
{
"id": 4,
"type": "table",
"title": "HTTP statuses",
"gridPos": {
"x": 12,
"y": 46,
"h": 13,
"w": 12
},
"fieldConfig": {
"defaults": {
"custom": {
"align": "auto",
"footer": {
"reducers": []
},
"cellOptions": {
"type": "auto"
},
"inspect": false
},
"mappings": [
{
"options": {},
"type": "value"
}
],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"color": {
"mode": "thresholds"
},
"unit": "none"
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "status"
},
"properties": [
{
"id": "mappings",
"value": [
{
"options": {
"100": {
"index": 0,
"text": "100 : Continue (продолжайте)"
},
"101": {
"index": 1,
"text": "101 : Switching Protocols (переключение протоколов)"
},
"102": {
"index": 2,
"text": "102 : Processing (идёт обработка)"
},
"103": {
"index": 3,
"text": "103 : Early Hints (предварительный ответ)"
},
"200": {
"index": 4,
"text": "200 : OK (хорошо)"
},
"201": {
"index": 5,
"text": "201 : Created (создано)"
},
"202": {
"index": 6,
"text": "202 : Accepted (принято)"
},
"203": {
"index": 7,
"text": "203 : Non-Authoritative Information (информация не авторитетна)"
},
"204": {
"index": 8,
"text": "204 : No Content (нет содержимого)"
},
"205": {
"index": 9,
"text": "205 : Reset Content (сбросить содержимое)"
},
"206": {
"index": 10,
"text": "206 : Partial Content (частичное содержимое)"
},
"207": {
"index": 11,
"text": "207 : Multi-Status (многостатусный)"
},
"208": {
"index": 12,
"text": "208 : Already Reported (уже сообщалось)"
},
"226": {
"index": 13,
"text": "226 : IM Used (использовано IM)"
},
"300": {
"index": 14,
"text": "300 : Multiple Choices (множество выборов)"
},
"301": {
"index": 15,
"text": "301 : Moved Permanently (перемещено навсегда)"
},
"302": {
"index": 16,
"text": "302 : Found (найдено)"
},
"303": {
"index": 17,
"text": "303 : See Other (смотреть другое)"
},
"304": {
"index": 18,
"text": "304 : Not Modified (не изменялось)"
},
"305": {
"index": 19,
"text": "305 : Use Proxy (использовать прокси)"
},
"306": {
"index": 20,
"text": "306 : (зарезервировано)"
},
"307": {
"index": 21,
"text": "307 : Temporary Redirect (временное перенаправление)"
},
"308": {
"index": 22,
"text": "308 : Permanent Redirect (постоянное перенаправление)"
},
"400": {
"index": 23,
"text": "400 : Bad Request (некорректный запрос)"
},
"401": {
"index": 24,
"text": "401 : Unauthorized (не авторизован)"
},
"402": {
"index": 25,
"text": "402 : Payment Required (необходима оплата)"
},
"403": {
"index": 26,
"text": "403 : Forbidden (запрещено)"
},
"404": {
"index": 27,
"text": "404 : Not Found (не найдено)"
},
"405": {
"index": 28,
"text": "405 : Method Not Allowed (метод не поддерживается)"
},
"406": {
"index": 29,
"text": "406 : Not Acceptable (неприемлемо)"
},
"407": {
"index": 30,
"text": "407 : Proxy Authentication Required (необходима аутентификация прокси)"
},
"408": {
"index": 31,
"text": "408 : Request Timeout (клиент долго отправлял данные и сервер закрыл соединение)"
},
"409": {
"index": 32,
"text": "409 : Conflict (конфликт)"
},
"410": {
"index": 33,
"text": "410 : Gone (удалён)"
},
"411": {
"index": 34,
"text": "411 : Length Required (необходима длина)"
},
"412": {
"index": 35,
"text": "412 : Precondition Failed (условие ложно)"
},
"413": {
"index": 36,
"text": "413 : Payload Too Large (полезная нагрузка слишком велика)"
},
"414": {
"index": 37,
"text": "414 : URI Too Long (URI слишком длинный)"
},
"415": {
"index": 38,
"text": "415 : Unsupported Media Type (неподдерживаемый тип данных)"
},
"416": {
"index": 39,
"text": "416 : Range Not Satisfiable (диапазон не достижим)"
},
"417": {
"index": 40,
"text": "417 : Expectation Failed (ожидание не оправдалось)"
},
"418": {
"index": 41,
"text": "418 : I'm a teapot (я — чайник)"
},
"419": {
"index": 42,
"text": "419 : Authentication Timeout (ошибка проверки CSRF)"
},
"421": {
"index": 43,
"text": "421 : Misdirected Request"
},
"422": {
"index": 44,
"text": "422 : Unprocessable Entity (необрабатываемый экземпляр)"
},
"423": {
"index": 45,
"text": "423 : Locked (заблокировано)"
},
"424": {
"index": 46,
"text": "424 : Failed Dependency (невыполненная зависимость)"
},
"425": {
"index": 47,
"text": "425 : Too Early (слишком рано)"
},
"426": {
"index": 48,
"text": "426 : Upgrade Required (необходимо обновление)"
},
"428": {
"index": 49,
"text": "428 : Precondition Required (необходимо предусловие)"
},
"429": {
"index": 50,
"text": "429 : Too Many Requests (слишком много запросов)"
},
"431": {
"index": 51,
"text": "431 : Request Header Fields Too Large (поля заголовка слишком большие)"
},
"449": {
"index": 52,
"text": "449 : Retry With (повторить с)"
},
"451": {
"index": 53,
"text": "451 : Unavailable For Legal Reasons (недоступно по юридическим причинам)"
},
"499": {
"index": 54,
"text": "499 : Client Closed Request (клиент закрыл соединение)"
},
"500": {
"index": 55,
"text": "500 : Internal Server Error (ошибка в коде на сервере или не хватает ресурсов для обработки запроса на сервере)"
},
"501": {
"index": 56,
"text": "501 : Not Implemented (не реализовано)"
},
"502": {
"index": 57,
"text": "502 : Bad Gateway (сервер получил некорректный ответ от другого сервера)"
},
"503": {
"index": 58,
"text": "503 : Service Unavailable (сервис недоступен)"
},
"504": {
"index": 59,
"text": "504 : Gateway Timeout (шлюз не отвечает)"
},
"505": {
"index": 60,
"text": "505 : HTTP Version Not Supported (версия HTTP не поддерживается)"
},
"506": {
"index": 61,
"text": "506 : Variant Also Negotiates (вариант тоже проводит согласование)"
},
"507": {
"index": 62,
"text": "507 : Insufficient Storage (переполнение хранилища)"
},
"508": {
"index": 63,
"text": "508 : Loop Detected (обнаружено перенаправление)"
},
"509": {
"index": 64,
"text": "509 : Bandwidth Limit Exceeded (исчерпана пропускная ширина)"
},
"510": {
"index": 65,
"text": "510 : Not Extended (не расширено)"
},
"511": {
"index": 66,
"text": "511 : Network Authentication Required (требуется сетевая аутентификация)"
},
"520": {
"index": 67,
"text": "520 : Unknown Error (неизвестная ошибка)"
},
"521": {
"index": 68,
"text": "521 : Web Server Is Down (веб-сервер не работает)"
},
"522": {
"index": 69,
"text": "522 : Connection Timed Out (соединение не отвечает)"
},
"523": {
"index": 70,
"text": "523 : Origin Is Unreachable (источник недоступен)"
},
"524": {
"index": 71,
"text": "524 : A Timeout Occurred (время ожидания истекло)"
},
"525": {
"index": 72,
"text": "525 : SSL Handshake Failed (квитирование SSL не удалось)"
},
"526": {
"index": 73,
"text": "526 : Invalid SSL Certificate (недействительный сертификат SSL)"
}
},
"type": "value"
}
]
}
]
},
{
"matcher": {
"id": "byName",
"options": "Requests"
},
"properties": [
{
"id": "custom.width",
"value": 140
}
]
}
]
},
"transformations": [
{
"id": "organize",
"options": {
"excludeByName": {
"Field": false,
"Time": true
},
"includeByName": {},
"indexByName": {},
"orderByMode": "manual",
"renameByName": {
"Time": "",
"Value #A": "Requests",
"status": ""
}
}
}
],
"pluginVersion": "12.3.0",
"targets": [
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "topk(100, sum by(status) (count_over_time({hostname=~\".+\", service_name =~ \"(.+)-be-([0-9].+)\"} | json status | status != `` [$__auto])))",
"legendFormat": "",
"queryType": "instant",
"refId": "A"
}
],
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"options": {
"showHeader": true,
"cellHeight": "sm",
"sortBy": [
{
"desc": true,
"displayName": "Requests"
}
]
}

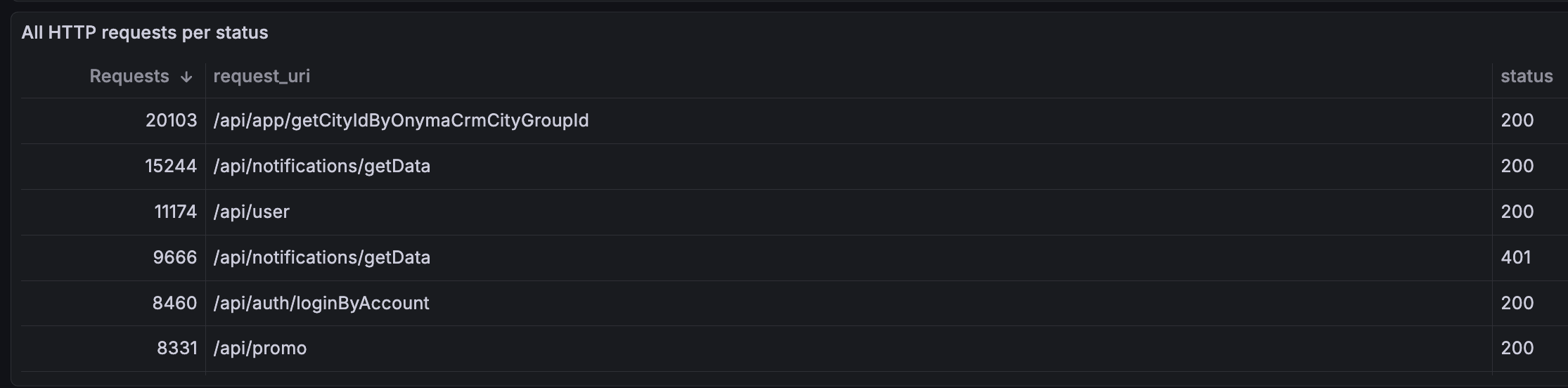

}All HTTP requests per status

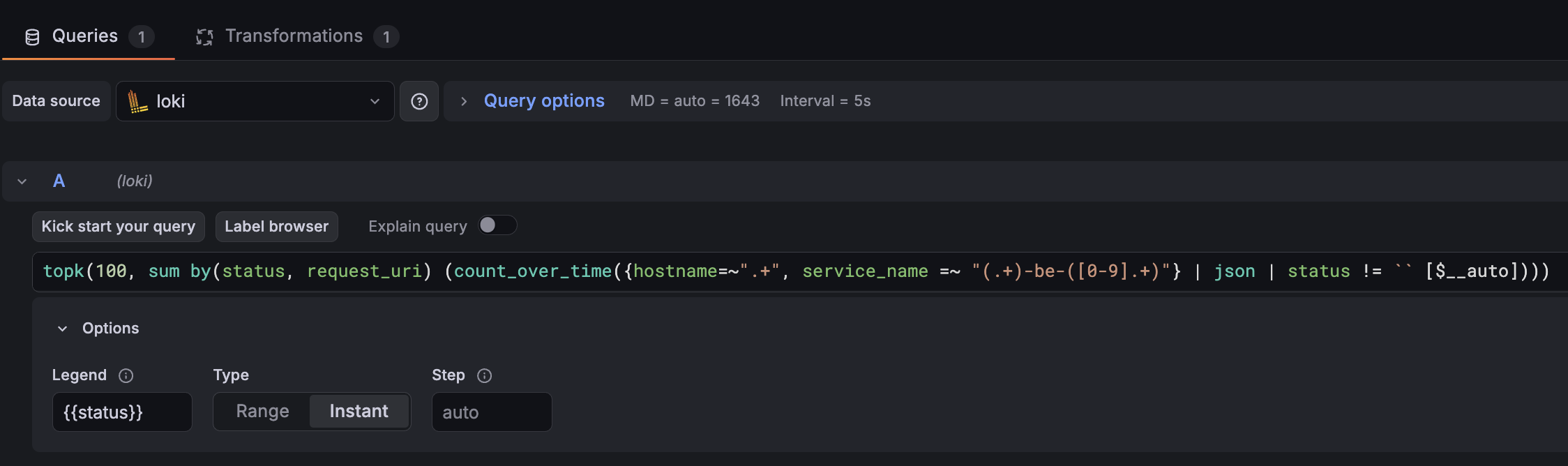

topk(100, sum by(status, request_uri) (count_over_time({hostname=~".+", service_name =~ "(.+)-be-([0-9].+)"} | json | status != `` [$__auto])))
{
"id": 6,
"type": "table",
"title": "All HTTP requests per status",
"gridPos": {
"x": 0,
"y": 59,
"h": 8,
"w": 12
},
"fieldConfig": {
"defaults": {
"custom": {
"align": "auto",
"footer": {
"reducers": []
},
"cellOptions": {
"type": "auto"
},
"inspect": false
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"color": {
"mode": "thresholds"
},
"unit": "none"
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "Requests"
},
"properties": [
{
"id": "custom.width",
"value": 146
}
]
},
{
"matcher": {
"id": "byName",
"options": "request_uri"
},
"properties": [
{
"id": "custom.width",
"value": 1017
}
]
}
]
},

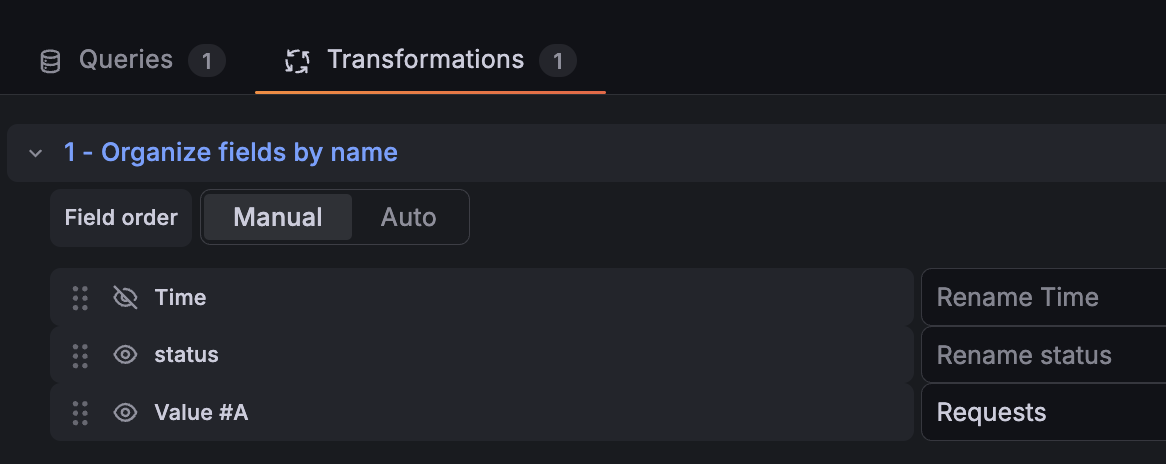

"transformations": [
{
"id": "organize",
"options": {
"excludeByName": {
"Field": false,
"Time": true
},
"includeByName": {},
"indexByName": {
"Time": 0,
"Value #A": 1,
"request_uri": 2,
"status": 3
},
"renameByName": {
"Value #A": "Requests"
}
}
}
],
"pluginVersion": "12.3.0",
"targets": [
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",
"expr": "topk(100, sum by(status, request_uri) (count_over_time({hostname=~\".+\", service_name =~ \"(.+)-be-([0-9].+)\"} | json | status != `` [$__auto])))",
"legendFormat": "{{status}}",
"queryType": "instant",
"refId": "A"
}
],
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"options": {
"showHeader": true,
"cellHeight": "sm",
"sortBy": [
{
"desc": true,
"displayName": "Requests"
}
]
}

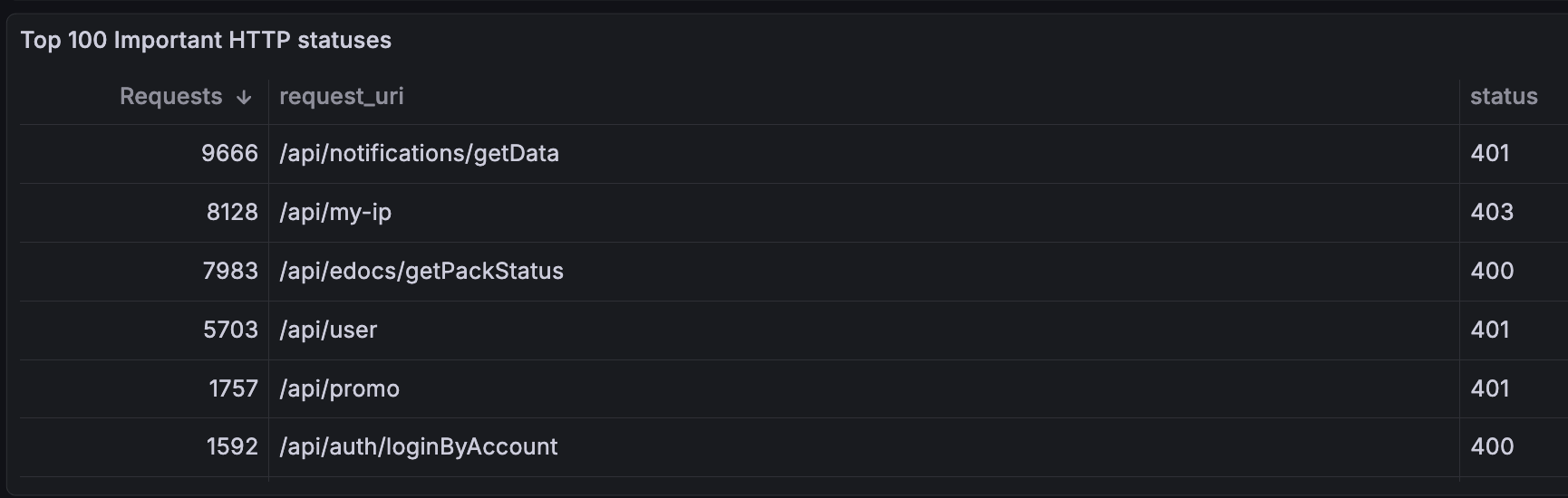

}Top 100 Important HTTP statuses
{
"id": 7,
"type": "table",
"title": "Top 100 Important HTTP statuses",
"gridPos": {
"x": 12,
"y": 59,
"h": 8,
"w": 12
},
"fieldConfig": {
"defaults": {
"custom": {
"align": "auto",
"footer": {
"reducers": []
},
"cellOptions": {
"type": "auto"
},
"inspect": false
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"color": {
"mode": "thresholds"
},
"unit": "none"
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "Requests"
},
"properties": [
{
"id": "custom.width",
"value": 153
}
]
}
]
},
"transformations": [
{
"id": "organize",
"options": {
"excludeByName": {
"Field": false,
"Time": true
},
"includeByName": {},
"indexByName": {
"Time": 0,
"Value #A": 1,
"request_uri": 2,
"status": 3
},
"renameByName": {
"Value #A": "Requests"
}
}
}
],
"pluginVersion": "12.3.0",
"targets": [
{
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"direction": "backward",
"editorMode": "code",

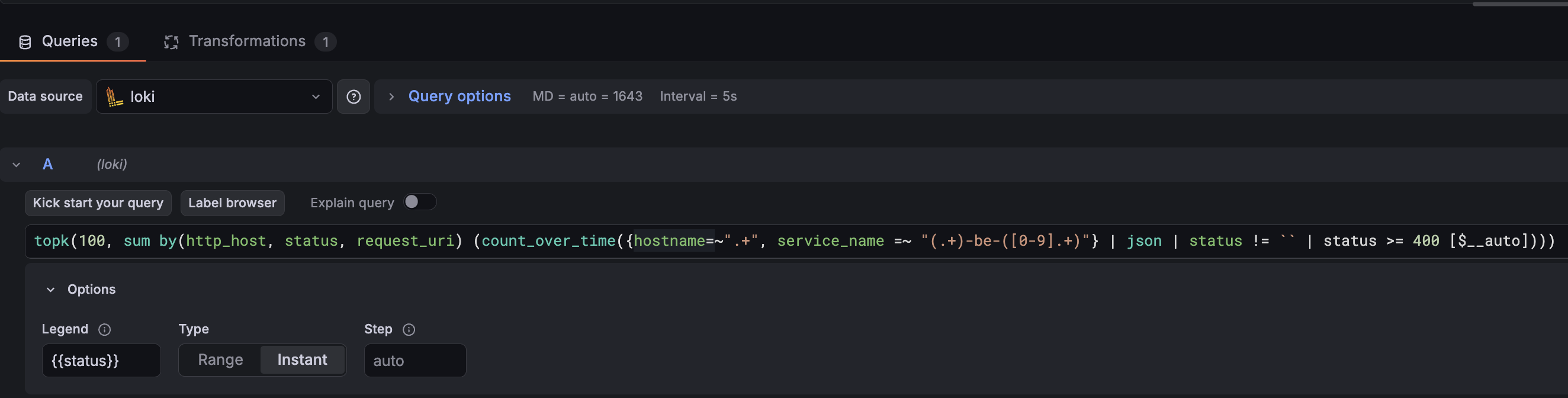

"expr": "topk(100, sum by(http_host, status, request_uri) (count_over_time({hostname=~\".+\", service_name =~ \"(.+)-be-([0-9].+)\"} | json | status != `` | status >= 400 [$__auto])))",
"legendFormat": "{{status}}",
"queryType": "instant",
"refId": "A"
}
],
"datasource": {
"type": "loki",
"uid": "bf64dm2w8rvggc"
},
"options": {
"showHeader": true,
"cellHeight": "sm",
"sortBy": [
{
"desc": true,
"displayName": "Requests"
}
]
}
}11.09.2021 07:08
Комментарии
Комментариев пока нет.
